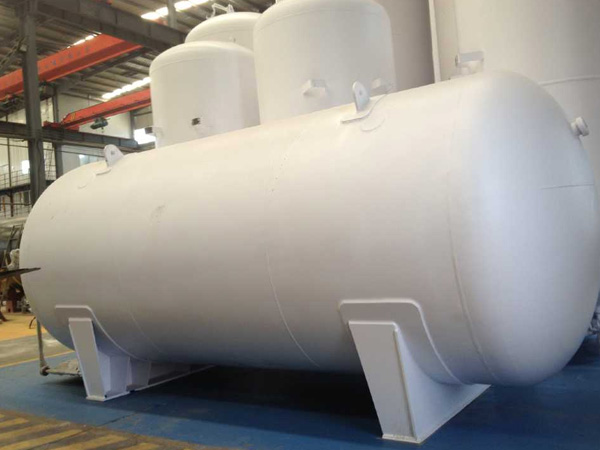

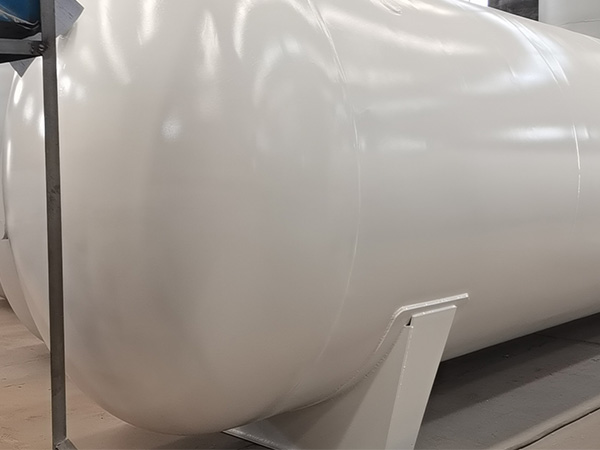

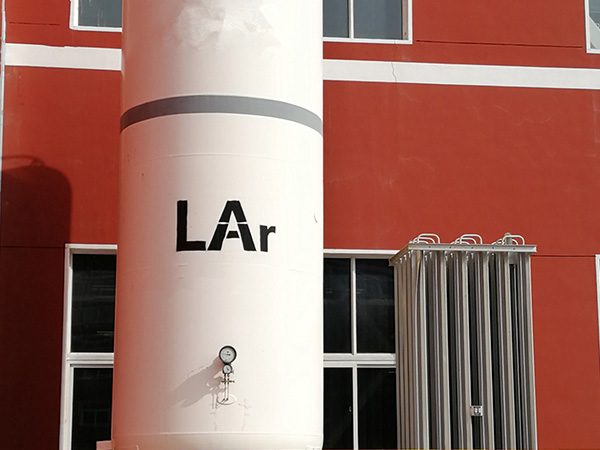

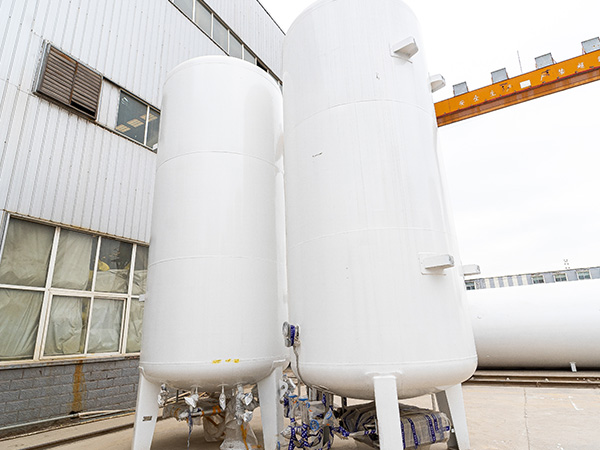

Liquid Argon Tank/LAr Tank

PRODUCT INTRODUCTION:

We supply cryogenic tanks for the following liquefied gases:
Liquid nitrogen (LIN)
Liquid argon (LAR)
Liquid oxygen (LOX)
Liquid natural gas (LNG)
Liquid carbon dioxide (LCO2)

PRODUCT INTRODUCTION

Purpose

Liquid argon storage tank is a device that compresses and refrigerates gas in the atmosphere to liquid, and store and transport liquid argon. Liquid argon storage tank is mainly composed of storage tank body, inner liner, outer insulation layer, support system, liquid outlet pipe, safety emptying device, etc.

Scope

Suitable for the entire production process of all liquid oxygen storage tanks customized by companies such as breweries and beverage factories.

Liquid Argon Tank/LAr Tank Technical Data:

TypeVertical/Horizontal
Diameter  Ø2000mm/ Ø2100mm/Ø3300mm/Ø3600mm
FluidLiquid Ar(Argon)Perlite
Working temp in/out-196℃Normal atmospheric temperature
Working pressureInner 0.8/1.6MPaOuter -0.1MPa
Design temperature-196℃60℃
Design pressure0.85/1.65MPa-0.1MPa
Corrosion Allowance0.0mm1.0mm
Joint eff1.00.85
MaterialS30408Q245R
Hydro test press0.95/1.91MPa0.11MPa
Design standardsISO,CE,ASME
Thermal-insulating ModelVacuum Powder Insulation or Multi-layer Entwining Thermal Insulation


Production Process

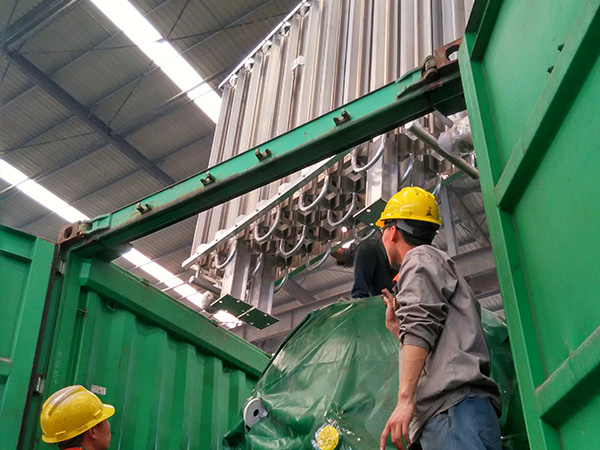

Packaging of cryogenic tank:

a.Capacity 1-5m3 20ft & 10-20m3 40ft container
b.No packing or Seaworthy packing
c.Customer's Request


Delivery of cryogenic tank :

We have agent forwarder,can help customers find best freight cost.

Company Profile:

Xinxiang Jinxin Machinery Co., Ltd. (CNJX Company) was founded in 1978, company is located in Chenbao Industrial Park, Xinxiang City, Henan Province. with its south to the yellow river and north to Taihang Mountain, with beautiful scenery and convenient transportation. The company has been committed to the cryogenic (liquid oxygen ,liquid nitrogen,liquid argon,liquified natural gas)storage tank, cryogenic liquid pump, ambient vaporizer liquid dewar cylinder, lpg tank, 20ft iso tank container,microbulk tank,small liquid nitrogen tank and related products in the field of research and development, design, manufacture and installation. Our company more than 70,000 square meter for workshop.Our company have exported products to foreign countries more than 45years,have rich experience in production and exported ,products have exported to more than 80 countries.

Our services

1.Product quality control and delivery time is strictly controlled;
2.Direct manufacturing factory offering competitive price;
3.All the inquiries will be replied within 12 hours;
4.OEM & ODM service are available;
5.Providing first-class after-sales services to the customers.
6.We are always take customer’s value first.
