Liquid Oxygen Storage Tank/LO2 Tank

PRODUCT INTRODUCTION:

Liquid oxygen storage tanks are storage pressure vessels, provided high-purity gases for steel plants, hospitals, gas production plants, food and beverage industries, welding and other industries.

PRODUCT INTRODUCTION

Purpose

Liquid oxygen storage tanks are storage pressure vessels, provided high-purity gases for steel plants, hospitals, gas production plants, food and beverage industries, welding and other industries.

Compared with using high-pressure cylinders for inflating, they are more economical and safer.

And reduce gas cost liquid oxygen storage tanks are currently the preferred liquid storage containers in various industries. CNJX company can design and manufacture what users need according to their requirements.

Liquid oxygen storage tank products have the characteristics of long service life, compact structure, small footprint, centralized control, and convenient operation and maintenance. The liquid oxygen storage tank is a double-layer fixed vacuum powder insulated storage tank (storage tank). The inner lining is made of stainless steel and the inner lining is made of O235B or 16MnR. The anti-corrosion layer on the surface of the liquid oxygen tank adopts sandblasting, purging, spraying and other processes, and uses two-component quick-curing liquid paint.

Scope

Suitable for the entire production process of all liquid oxygen storage tanks customized by companies such as breweries and beverage factories.

Liquid Oxygen Storage Tank/LO2 Tank Technical Data:

TypeVertical/Horizontal
Diameter  Ø2000mm/ Ø2100mm/Ø3300mm/Ø3600mm
FluidLiquid O2Perlite
Working temp in/out-196℃Normal atmospheric temperature
Working pressureInner 0.8/1.6MPaOuter -0.1MPa
Design temperature-196℃60℃
Design pressure0.85/1.65MPa-0.1MPa
Corrosion Allowance0.0mm1.0mm
Joint eff1.00.85
MaterialS30408Q245R
Hydro test press0.95/1.91MPa0.11MPa
Design standardsISO,CE,ASME
Thermal-insulating ModelVacuum Powder Insulation or Multi-layer Entwining Thermal Insulation


Production Process

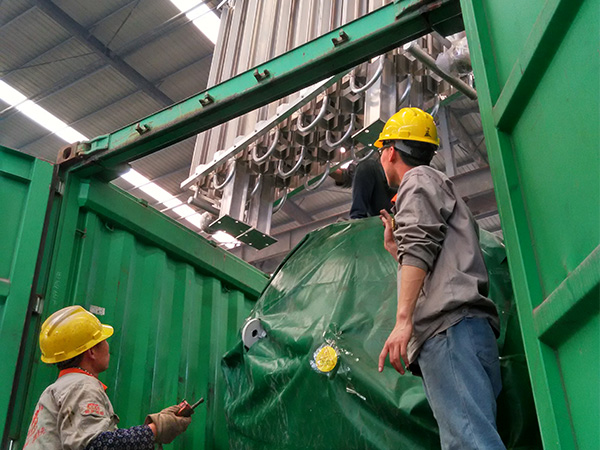

Packaging of cryogenic tank:

a.Capacity 1-5m3 20ft & 10-20m3 40ft container
b.No packing or Seaworthy packing
c.Customer's Request


Delivery of cryogenic tank :

We have agent forwarder,can help customers find best freight cost.

Company Profile:

Xinxiang Jinxin Machinery Co., Ltd. (CNJX Company) was founded in 1978, company is located in Chenbao Industrial Park, Xinxiang City, Henan Province. with its south to the yellow river and north to Taihang Mountain, with beautiful scenery and convenient transportation. The company has been committed to the cryogenic (liquid oxygen ,liquid nitrogen,liquid argon,liquified natural gas)storage tank, cryogenic liquid pump, ambient vaporizer liquid dewar cylinder, lpg tank, 20ft iso tank container,microbulk tank,small liquid nitrogen tank and related products in the field of research and development, design, manufacture and installation. Our company more than 70,000 square meter for workshop.Our company have exported products to foreign countries more than 45years,have rich experience in production and exported ,products have exported to more than 80 countries.

Our services

1.Product quality control and delivery time is strictly controlled;
2.Direct manufacturing factory offering competitive price;
3.All the inquiries will be replied within 12 hours;
4.OEM & ODM service are available;
5.Providing first-class after-sales services to the customers.
6.We are always take customer’s value first.
